| Name | Resolution | Per Pixel Exposure |
Lux | Comments | Description | Image | |

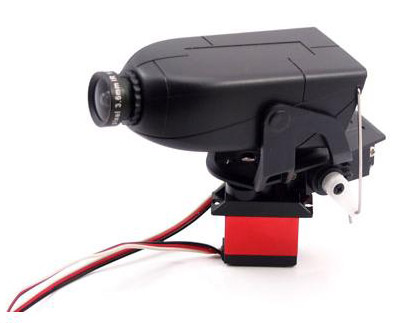

| CMOS FPV Kamera bundle | x420 | ? | CMOS FPV Kamera bundle 420TVL 5V Auflsung: 420 TVL Gre Kamerakopf: 20x20mm Gre samt Servos: 84x35mm Gewicht: 40g komplett Spannung: 3.3-5V Stromverbrauch: 60mA |
 |
|||
| GF-PX690 FPV Kamera 690TVL Pixim Seawolf | x690 |
Yes | 0,8 | Bildsensor: 1⁄3" Pixim DPS SEAWOLF CMOS Auflösung: 690 TVL (PAL) Gamma Charakteristik: konfigurierbar Verstärkerregelung: konfigurierbar Gegenlichkompensation: konfigurierbar Weißabgleich: konfigurierbar Blendengeschwindigkeit: konfigurierbar Bildspiegelung: konfigurierbar Tag & Nachtmodus :konfigurierbar Dynamikbereich: bis 120dB Digitale Rauschunterdrückung: auto⁄high⁄low Versogungsspannung: 10 - 12V DC Stromverbrauch: 170mA +- 10% (bei 12V) Arbeitstemperatur: -10°C - 50°C Abmessungen: 32x32x43 mm Gewicht: 47g Objektiv 4 mm mit IR Filter |
 |
||
| GF-OSC FPV Kamera WDR 700TVL 5-15V | x600 | Yes | 0,06 | Bildsensor: 1⁄3" Sony 960H Super HAD CCD II, Effio-P DSP Auflösung: 600 TVL Lichtempfindlichkeit: 0,06 Lux Signal-Rauschverhältnis: konfigurierbar Gamma Charakteristik: konfigurierbar Verstärkerregelung: konfigurierbar Gegenlichkompensation: konfigurierbar Weißabgleich: konfigurierbar Blendengeschwindigkeit: konfigurierbar Bildspiegelung: konfigurierbar Tag & Nachtmodus :konfigurierbar Versogungsspannung: 5-15V DC Stromverbrauch: 150mAh +- 10% Arbeitstemperatur: -10°C - 50°C Abmessungen: 30x30x30 (mm) Gewicht: 35g Objektiv 3,6mm |
 |
||
| Fat Shark RCV922 CCD Pilots CAM SPECIFICATION REV D | x420 | ? | 0.3 | Type Colour Signal System PAL ⁄ NTCS Pick Up Device 1⁄3 SONY Super-HAD CCD Picture Elements 510(H) X 582(V) Resolution 420TV Lines Min Illumination 0.3 Lux Scanning System 2:1 Interlace Sync System Internal S⁄N Ratio More than 50dB Gain Control Auto White Balance Auto Lens 3.6mm installed, 2.8mm extra Video output 1.0V p-p (75 ? BNC) Power Supply 3.3 – 5V DC Power Consumption 200mA Dimensions 27 X 25 mm Weight 31g Operating Temperature |
 |
||
| Fat Shark CMOS CCD Killer SPECIFICATION REV D | ? | Lens 3.6mm IR coated 87 degree FOV diagonal Optional 2.8mm 95 degree FOV diagonal Audio: Left⁄Right stereo low sensitivity (mics can be cut off for slim camera profile) Electrical: Power supply: 3.5 – 5.5V (no over voltage protection) Power consumption: 60mA (@ 5V Mechanical: High impact plastic casing Weight: 39g with pan⁄tilt (15g no servos) Lens locking ring Imager: ¼ CMOS 420TVL Low light sensitivity Available in NTCS or PAL (set by resistor position on PCB) Termination 5p Molex locking (IRC TX compatible) Pan⁄Tilt Mechanism 2 pieces smooth movement 9g servos Pan and tilt brackets Screw and rubber clutch gasket for tilt (saves tilt servo on impacts) |
 |
||||
| Fat Shark AirFLO HD SPECIFICATION DO CUMENT (REV A 9⁄29⁄2012) |
? | AirFLO HD SPECIFICATION DOCUMENT (REV A 9⁄29⁄2012) Image Sensor 1⁄3.2C MOS 5 Million Pixel Lens: Fixed Focus,f=X.Xmm,Angle of View=XXº Interchangeable Exposure Control: Auto Exposure White Balance Auto White Balance Photo Format: JPEG Pixel:2592 x1944 Video: H.264 video compression, AVI file Size 16:9 1920 x1080 30fps 16:9 1280 x720 60fps ⁄1280 x720 30fps Video section 5 min⁄10 min⁄15 min ⁄30 min Bitrate 8Mbps 12 Mbps 15 Mbps 3D capable via 2 cameras serial linked (option) AV out : D1, NTSC⁄PAL selectable Storage High Speed Micro SD TF card Maximum support 32GB FPV Specific Features Power up and start record on startup 433Mhz RF safe for UHF controllers.No auto power shutdown under any conditions Interface: AVout with power, MINI USB, IR control, Serial port Dimensions 26 X 36 X66 (mm) Weight 38g no battery 55g with battery Operation Temperature -10 – 40C Battery 3.7V 800mAh Lithium polymer Charger None (charge through USB) |
 |
||||
| GoPro | NO | Live output is very slow, not recommended for FPV | |||||
| FlyCamOne | |||||||
